What is MCB?
MCB stands for Miniature Circuit Breaker. It is a type of
switch that automatically shuts off an electrical circuit when it detects an
overcurrent, preventing damage to the electrical wiring and connected devices.
MCBs are commonly used in residential, commercial, and industrial electrical
systems to provide protection against overloads and short circuits.
MCBs are compact and typically housed in a plastic or metal
casing. They consist of a switch mechanism and a tripping mechanism. The switch
mechanism is used to manually turn the circuit on and off, while the tripping
mechanism automatically trips the switch when an overcurrent is detected.
MCBs are available in a range of current ratings and trip
characteristics, which are used to match the MCB to the specific application.
Some MCBs also have additional features, such as the ability to provide
protection against earth leakage or to be remotely controlled.
Overall, MCBs are an important safety device in electrical
systems, providing protection against overloads and short circuits, and helping
to prevent damage to electrical equipment and potential hazards such as
electrical fires.
Working Principle of MCB
The working principle of an MCB (Miniature Circuit Breaker)
is based on the thermal and electromagnetic effects of an overcurrent.
When the current flowing through an MCB exceeds its rated
value, it causes an increase in temperature due to the resistance of the
conducting material. The MCB has a bimetallic strip that is designed to bend
due to the heat generated by the overcurrent. As the bimetallic strip bends, it
triggers a trip mechanism that trips the MCB and interrupts the flow of
current.
In addition to the thermal effect, MCBs also use an
electromagnetic effect to detect over currents. The MCB has an electromagnet
that is positioned near the bimetallic strip. When the current flowing through
the MCB exceeds its rated value, it generates a magnetic field that attracts
the electromagnet. As the electromagnet is energized, it triggers the trip
mechanism and trips the MCB.
Overall, the working principle of an MCB is based on the
thermal and electromagnetic effects of over currents. When the current flowing
through the MCB exceeds its rated value, the bimetallic strip and/or the
electromagnet detect the overcurrent and trigger the trip mechanism, which
shuts off the flow of current to the circuit. This helps to protect the
electrical wiring and devices from damage caused by overloads and short
circuits.
Uses of MCB
MCBs (Miniature Circuit Breakers) are commonly used in
residential, commercial, and industrial electrical systems for circuit
protection. They provide a number of benefits over traditional fuses, including
faster response times, improved reliability, and the ability to be reset and
reused.
Some common uses of MCBs include:
- Overload
Protection: MCBs are used to protect circuits against overloads, which
occur when the current flowing through the circuit exceeds its rated
value. An MCB automatically trips when an overload occurs, preventing
damage to the electrical wiring and devices connected to the circuit. - Short
Circuit Protection: MCBs are also used to protect circuits against short
circuits, which occur when there is a low-resistance connection between
two conductors. An MCB trips quickly in the event of a short circuit,
preventing damage to the electrical system. - Ground
Fault Protection: Some MCBs have built-in ground fault protection, which
detects and trips in the event of a ground fault, preventing electrical
shock and other hazards. - Remote
Control: Some MCBs have the ability to be remotely controlled, allowing
for easy monitoring and control of electrical circuits.
Overall, MCBs are an important safety device in electrical
systems, providing protection against overloads, short circuits, and ground
faults, and helping to prevent damage to electrical equipment and potential
hazards such as electrical fires.
Different Types of MCB
There are several types of MCBs (Miniature Circuit
Breakers), each designed for specific applications. Some of the common types of
MCBs include:
- Type B
MCB: These MCBs are designed to protect against overloads and short
circuits in circuits that contain resistive and inductive loads, such as
lighting circuits. - Type C
MCB: These MCBs are designed to protect against overloads and short
circuits in circuits that contain resistive and inductive loads, such as
motor circuits. - Type D
MCB: These MCBs are designed to protect against overloads and short
circuits in circuits that contain highly inductive loads, such as
transformers and fluorescent lighting. - Type K
MCB: These MCBs are designed to protect against overloads and short
circuits in circuits that contain semiconductor devices, such as
rectifiers and power supplies. - Type Z
MCB: These MCBs are designed to protect against overloads and short
circuits in circuits that contain sensitive electronic equipment, such as
computers and telecommunication systems. - Residual
Current Circuit Breaker (RCCB): These MCBs are designed to provide
protection against earth leakage and are commonly used in circuits where
electrical shock hazards exist, such as in outdoor areas or near water. - Combination
MCB/RCCB: These MCBs combine the features of both an MCB and an RCCB,
providing protection against both overloads and earth leakage.
Overall, the type of MCB used depends on the specific
application and the characteristics of the electrical load being protected.
Parts of MCB

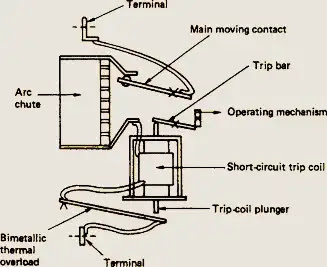

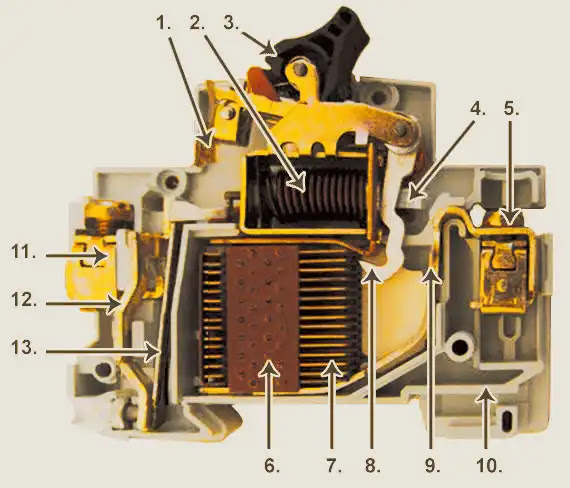

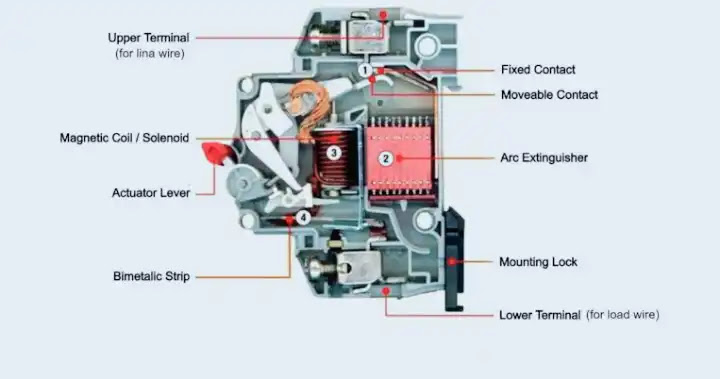

The main parts of an MCB (Miniature Circuit Breaker)
include:
- Operating
Mechanism: This is the part of the MCB that is responsible for opening and
closing the circuit. It is typically a toggle or rocker switch that can be
manually operated. - Current
Carrying Components: These are the parts of the MCB that carry the
electrical current through the device. They include the contact terminals,
which make contact with the circuit conductors, and the current-carrying
elements, which are typically made of a bimetallic strip or an
electromagnet. - Trip
Mechanism: This is the part of the MCB that is responsible for tripping
the device in the event of an overcurrent. It is typically a bimetallic
strip or an electromagnet that is designed to open the circuit when a
predetermined current threshold is exceeded. - Calibration
Mechanism: This is the part of the MCB that allows the user to adjust the
current rating of the device. It is typically a dial or switch that can be
adjusted to match the current rating of the circuit being protected. - Housing:
This is the outer shell of the MCB that protects the internal components
and provides a means of mounting the device in an electrical panel or
enclosure.
Overall, these parts work together to provide protection
against overloads and short circuits in electrical circuits. The operating
mechanism allows the circuit to be manually opened and closed, while the
current carrying components, trip mechanism, and calibration mechanism work
together to provide protection against overcurrents.
Advantages and Disadvantages of MCB
Advantages of MCBs:
- Faster
Response: MCBs can detect and respond to overcurrents more quickly than
fuses, which can help to prevent damage to electrical equipment and reduce
downtime. - Resettable:
Unlike fuses, MCBs can be easily reset after tripping, which reduces the
need for replacement components and saves time and money. - Better
Protection: MCBs are designed to provide more precise protection against
overcurrents than fuses, which can help to prevent damage to sensitive
electronic equipment. - Higher
Breaking Capacity: MCBs typically have a higher breaking capacity than
fuses, which means they can interrupt higher fault currents without
damaging the device. - More
Accurate Current Rating: MCBs have a more accurate current rating than
fuses, which means they are less likely to trip unnecessarily or fail to
trip when needed.
Disadvantages of MCBs:
- Higher
Cost: MCBs are generally more expensive than fuses, which can be a
disadvantage for applications where cost is a primary concern. - Limited
Fault Current Protection: MCBs may not be able to protect against very
high fault currents, which can be a disadvantage for applications where
high fault currents are expected. - Limited
Lifespan: MCBs have a limited lifespan and may need to be replaced
periodically, which can be a disadvantage in applications where long-term
reliability is important. - Sensitive
to Environmental Factors: MCBs may be sensitive to environmental factors
such as temperature and humidity, which can affect their performance and
reliability.
Overall, the advantages of MCBs outweigh their disadvantages
in most applications. However, it is important to consider the specific
requirements of the application when choosing between MCBs and other protective
devices.
Difference between MCB and RCCB
MCB (Miniature Circuit Breaker) and RCCB (Residual Current
Circuit Breaker) are both electrical protection devices used in electrical
distribution systems, but they serve different purposes.
MCB is designed to protect electrical circuits from
overloads and short circuits. It is an automatic switch that disconnects the
circuit when it detects a fault current that exceeds the rated value of the
breaker. MCBs are available in various current ratings, and they are used in
residential, commercial, and industrial applications.
RCCB, on the other hand, is designed to provide protection
against electric shock caused by current leakage. It detects residual current
flowing through the circuit and disconnects the circuit when the current
exceeds a predetermined level. RCCBs are commonly used in residential and
commercial applications where the risk of electric shock is high, such as in
damp or wet environments.
Here are some of the main differences between MCB and RCCB:
- Purpose:
MCB is used for protection against overloads and short circuits, while
RCCB is used for protection against electric shock. - Operating
Principle: MCB operates based on the magnetic and thermal effect of
overcurrent, while RCCB operates based on residual current. - Current
Sensitivity: MCBs are typically available in current ratings up to 125 A,
while RCCBs are typically available in current ratings up to 100 A. RCCBs
are more sensitive to low-level residual currents and can detect currents
as low as 10 mA. - Sensitivity
to Fault Current: MCBs are less sensitive to fault currents than RCCBs. - Cost:
RCCBs are generally more expensive than MCBs due to their more advanced
design and additional features.
Overall, MCBs and RCCBs serve different purposes in
electrical distribution systems and are designed to protect against different
types of faults. The choice between MCB and RCCB depends on the specific
requirements of the application and the level of protection needed.
Here is a table summarizing the main differences between MCB
and RCCB:
|
Feature |
MCB |
RCCB |
|
Purpose |
Protection |
Protection |
|
Operating |
Magnetic |
Residual |
|
Current |
Typically |
Typically |
|
Sensitivity |
Not |
More |
|
Sensitivity |
Less |
More |
|
Cost |
Generally |
Generally |
It’s important to note that while MCBs and RCCBs are
different devices, they can be used together in electrical distribution systems
to provide more comprehensive protection against faults.
Difference between MCB
and MCCB
MCB
(Miniature Circuit Breaker) and MCCB (Molded Case Circuit Breaker) are both
types of circuit breakers used in electrical distribution systems. While they
have some similarities, they also have some differences in terms of their
design, capabilities, and applications.
Here are some of the main differences between MCB and MCCB:
- Current
Rating: MCBs are typically designed for lower current ratings, typically
up to 125 A. MCCBs, on the other hand, can handle higher current ratings,
usually ranging from 100 A to 2,500 A. - Trip
Characteristics: MCBs have fixed trip characteristics that are pre-set by
the manufacturer and cannot be adjusted. MCCBs, on the other hand, have
adjustable trip characteristics that can be set according to the
requirements of the application. - Breaking
Capacity: MCBs have a lower breaking capacity than MCCBs. The breaking
capacity of an MCB typically ranges from 3 kA to 10 kA, while the breaking
capacity of an MCCB can range from 10 kA to 200 kA. - Design:
MCBs are typically designed for use in low-voltage applications, while
MCCBs are designed for use in both low-voltage and medium-voltage
applications. - Application:
MCBs are commonly used in residential, commercial, and industrial
applications to protect electrical circuits from overloads and short
circuits. MCCBs are commonly used in industrial applications where higher
current ratings and breaking capacities are required, such as in heavy
machinery and equipment.
Overall, while MCBs and MCCBs are both types of circuit
breakers, they have different capabilities and are designed for different
applications. The choice between MCB and MCCB depends on the specific
requirements of the application, including the current rating, breaking
capacity, and trip characteristics needed.
Here is a table summarizing the main differences between MCB
and MCCB:
|
Feature |
MCB |
MCCB |
|
Current |
Typically |
Ranging |
|
Trip |
Fixed |
Adjustable |
|
Breaking |
Lower |
Higher |
|
Design |
Designed |
Designed |
|
Application |
Used in |
Used in |
It’s important to note that while MCBs and MCCBs have some
differences, they are both important components of electrical distribution
systems and are used to protect against electrical faults. The choice between
MCB and MCCB depends on the specific requirements of the application, including
the current rating, breaking capacity, and trip characteristics needed.
